  Product ID87002397

  Manufacturer

  CharacteristicsShaft-Ø (mm): 25.4 mm
  Displacement (cm³): 317.5

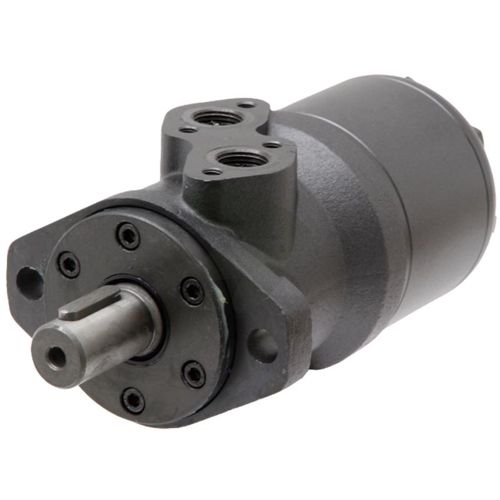

  Motor BMR 315, with high capacity for demanding hydraulic systems.

  Connection A-B (BSP): 1/2"
  Volume (cm³): 317.5
  Maximum speed (rpm): 190
  Input pressure (bar): 200
  Leak oil connection: G 1/4"
  Connection: G 1/2"
  Pressure difference (bar): 90

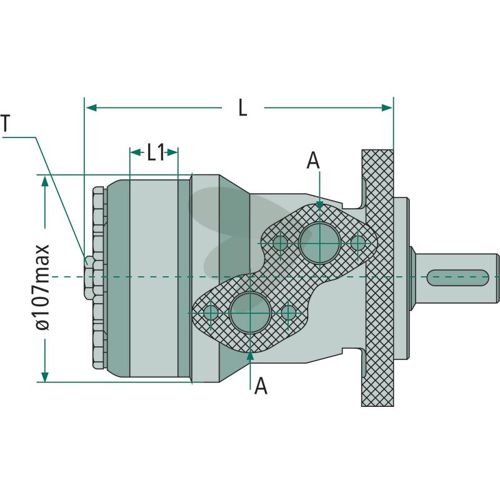

  L1 (mm): 62
  Comparison number Danfoss: 11185545
  Length (mm): 192
  Maximum torque (Nm): 390
  Maximum performance (kW): 6
  Maximum flow volume (l/min): 60
  Axle diameter (mm): 25.4
