Engine BMR 250

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000822

  Manufacturer

  CharacteristicsAxis-Ø (mm): 25
  Displacement (cm³): 253.3

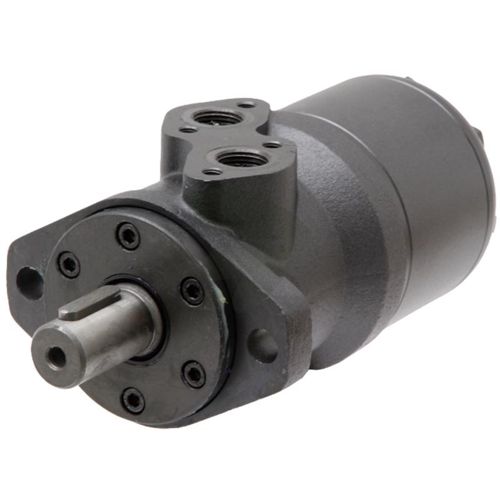

  Motor BMR 250, high capacity for heavy hydraulic applications.

  L (mm): 180
  Max torque (Nm): 390
  Leak oil connection: G 1/4"
  Connection: G 1/2"
  Connection A-B (BSP): 1/2"
  Shaft sealing design: Hochdruckdichtung
  Comparison number Danfoss: 11186667
  Pressure differential (bar): 110
  Input pressure (bar): 200
  L1 (mm): 50
  Max performance (kW): 7.0
  Max volume flow (l/min): 60
  Shaft-Ø (mm): 25
  Comparison number S.A.M. Hydraulics: BG EC25 250
  Volume (cm³): 253.3
  Max speed (rpm): 240
