Engine BMR 200

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product ID87033006

  Manufacturer

  CharacteristicsShaft-Ø (mm): 25.4 mm SAE-6B
  Displacement (cm³): 194.5

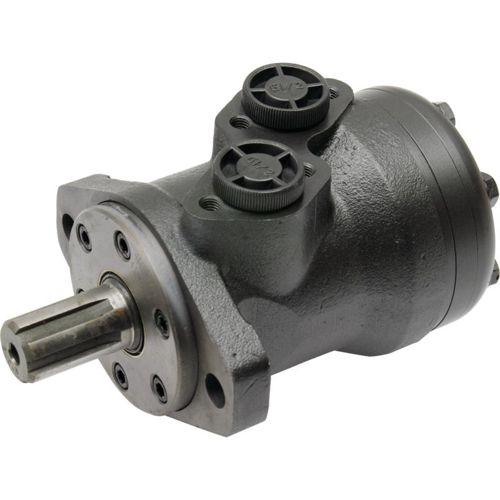

  Motor BMR 200 with high capacity, perfect for industrial hydraulic systems.

  Volume (cm³): 194.5

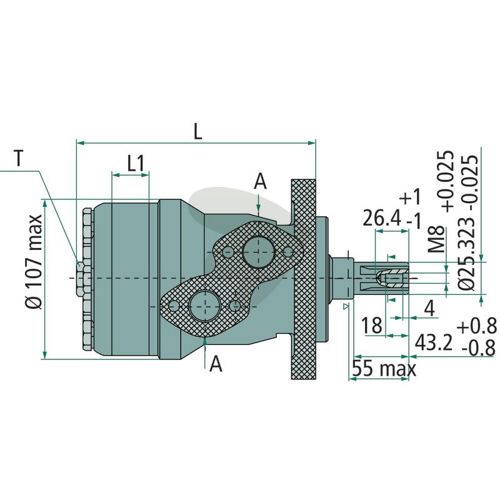

  L1 (mm): 38.1
  Axle diameter (mm): 1"
  Maximum torque (Nm): 360
  Input pressure (bar): 200
  Connection A-B (BSP): 1/2"
  Maximum flow volume (l/min): 60
  Length (mm): 170
  Maximum performance (kW): 10
  Leak oil connection: G 1/4"
  Connection: G 1/2"
  Comparison number Danfoss: 11185573
  Pressure difference (bar): 130
  Maximum speed (rpm): 310 bar
