Engine BMR 200

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000885

  Manufacturer

  CharacteristicsAxle-Ø (mm): 32
  Displacement (cm³): 194.5

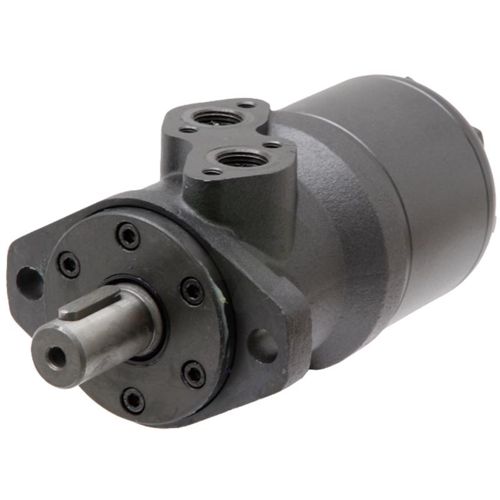

  Compact and powerful Motor BMR 200, ideal for hydraulic applications with high load.

  Max torque (Nm): 450
  Inlet pressure (bar): 200
  Max power (kW): 11.0
  Connection: G 1/2"
  Connection A-B (BSP): 1/2"

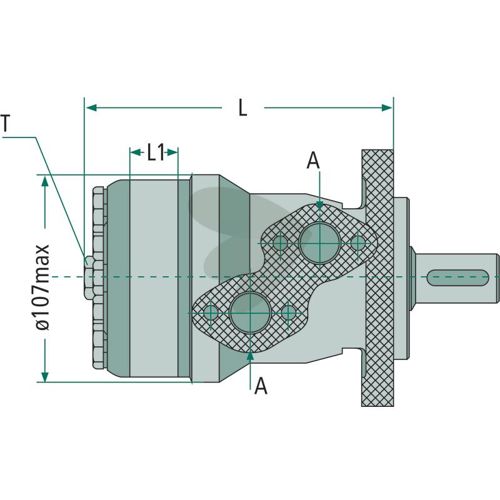

  L1 (mm): 38.1
  Axle Ø (mm): 32
  Comparison no. S.A.M. Hydraulics: BG EC32 200
  L (mm): 170
  Volume (cm³): 194.5
  Max speed (r/min): 310
  Comparison no. Danfoss: 1510245
  Pressure difference (bar): 175
  Max flow rate (l/min): 60
  Leakage oil connection: G 1/4"
