  Product ID87000830

  Manufacturer

  CharacteristicsShaft diameter (mm): 25
  Displacement (cm³): 36

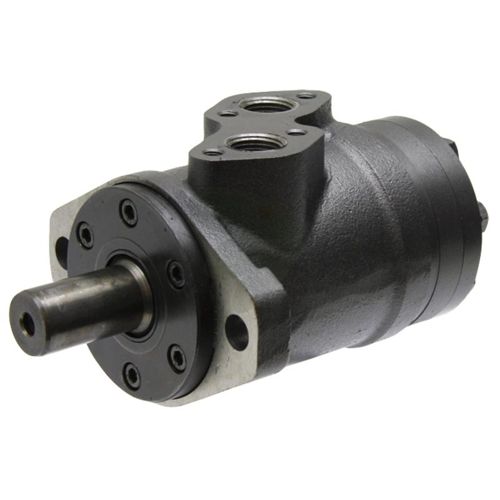

  Motor BMP 36, adapted for precision drive in hydraulic systems.

  Comparison number S.A.M. Hydraulics: BGE 36
  Max speed (rpm): 1500
  Comparison number Danfoss: 11185775
  Volume (cm³): 36
  Connection A-B (BSP): 1/2"
  Leak oil connection: G 1/4"
  Shaft-Ø (mm): 25
  Pressure differential (bar): 125
  Max torque (Nm): 55
  Max performance (kW): 8.0

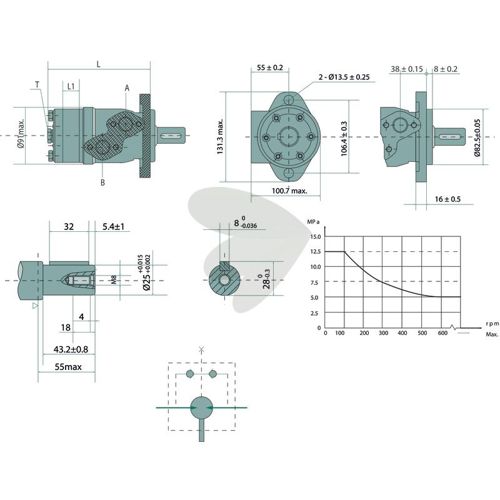

  L1 (mm): 7
  L (mm): 137
  Input pressure (bar): 165
  Max volume flow (l/min): 55
  Connection: G 1/2"
