Engine BMM 20

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000825

  Manufacturer

  CharacteristicsAxis-Ø (mm): 16
  Displacement (cm³): 19.9

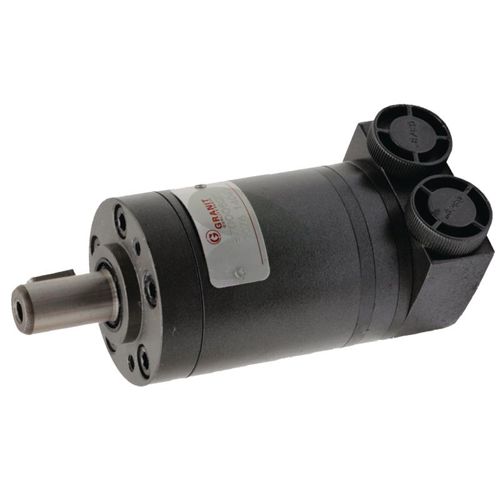

  Motor BMM 20, reliable and efficient for smaller hydraulic systems.

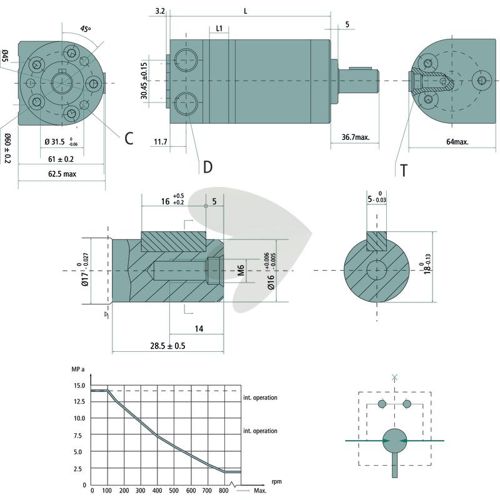

  L (mm): 110
  Leak oil connection: G 1/8"
  Comparison number Danfoss: 151G0005
  Connection: G 3/8"
  Pressure differential (bar): 100
  Volume (cm³): 19.9
  Max speed (rpm): 1000
  Input pressure (bar): 175
  Connection A-B (BSP): 3/8"
  Shaft-Ø (mm): 16
  Comparison number S.A.M. Hydraulics: BGM S020 SP1
  Max torque (Nm): 25
  Max performance (kW): 2.4
  Max volume flow (l/min): 20
  L1 (mm): 8.5
