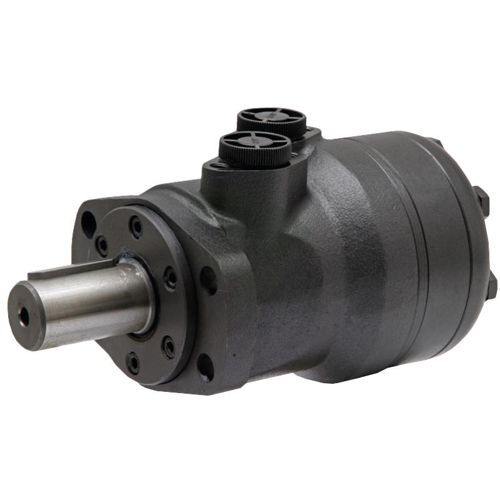

Engine BMH 400

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000844

  Manufacturer

  CharacteristicsShaft diameter (mm): 32
  Displacement (cm³): 406

  Motor BMH 400 with high torque, suitable for intensive hydraulic applications.

  Speed max. (v/min): 183
  Connection: G 1/2"
  Reference no. Danfoss: 151H1005
  Input pressure (bar): 200
  Leak oil connection: G 1/4"
  L1 (mm): 54
  L (mm): 195
  Volume (cm³): 406
  Performance max. (kW): 12.5
  Connection A-B (BSP): 1/2"
  Volume flow max. (l/min): 75
  Axis Ø (mm): 32
  Pressure difference (bar): 155
  Torque max. (Nm): 850
