Hydraulic cylinder 80x50X600 Painted

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDHS8050600K

  Manufacturer

  CharacteristicsInstallation dimension 823 mm
  Working pressure max 210 bar
  Double-acting (Can be made single-acting)

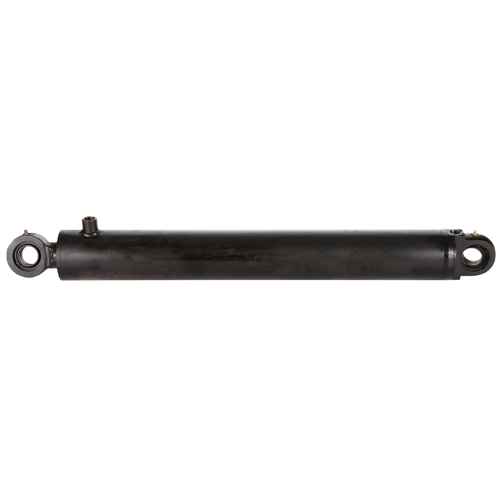

  Double-acting Hydraulic Cylinder 80x50x600.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH12.

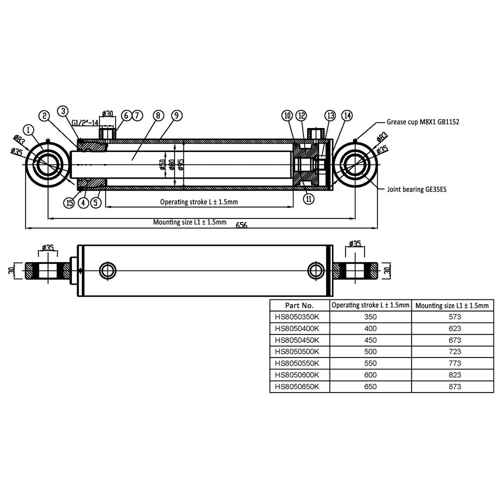

  Technical specification:
  - piston 80 mm
  - rod 50 mm
  - rod end 35 mm
  - thread 1/2"
  - stroke length 600 mm
  - overall length 823 mm
  - maximum working pressure 210 bar
