Hydraulic cylinder 80X50X500 Painted

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS8050500J

  Manufacturer

  CharacteristicsFew left in stock.

  Installation dimensions 780 mm
  Maximum working pressure 300 bar
  Double-acting (Can be converted to single-acting)

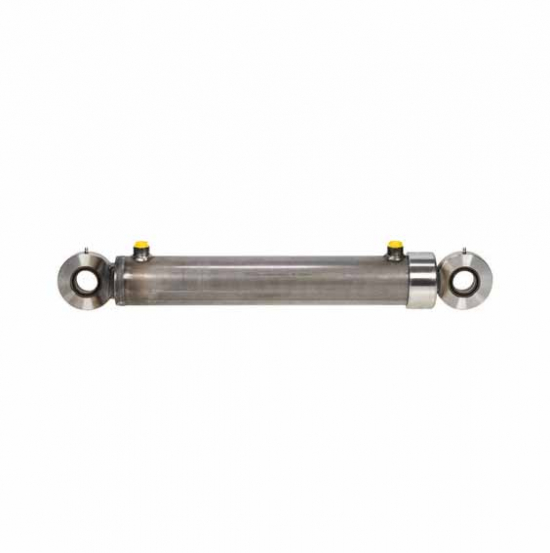

  Double-acting Hydraulic Cylinder 80x50x500.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH12.

  Technical specification:
  - piston Ø 80 mm
  - B = rod Ø 50 mm
  - C = cylinder outer dimension Ø 95 mm
  - D = pivot bearing 40 mm
  - E = Ø 105 mm
  - thread R 1/2"
  - stroke length 500 mm
  - installation dimension 780 mm
  - working pressure max 300 bar
  - unpainted
