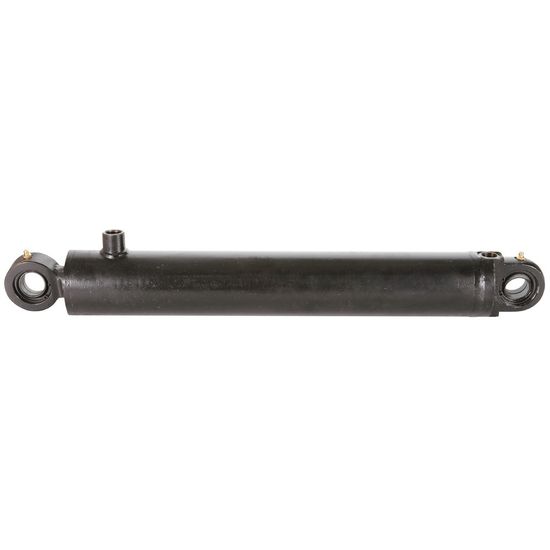

Hydraulic cylinder 70x40X500 Painted

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDHS7040500K

  Manufacturer

  CharacteristicsInstallation dimension 708 mm
  Working pressure max 210 bar
  Double-acting (Can be made single-acting)

  Double-Acting Hydraulic Cylinder 70x40x500.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH12.

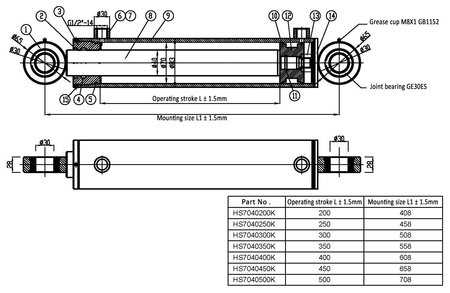

  Technical specifications:
  - piston 70 mm
  - rod 40 mm
  - bearing 30 mm
  - thread 1/2"
  - stroke length 500 mm
  - installation dimensions 708 mm
  - maximum working pressure 210 bar
