Hydraulic Cylinder 63x40x500 Painted

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDHS6340500K

  Manufacturer

  CharacteristicsInstallation dimensions 708 mm
  Working pressure max 210 bar
  Double-acting (Can be converted to single-acting)

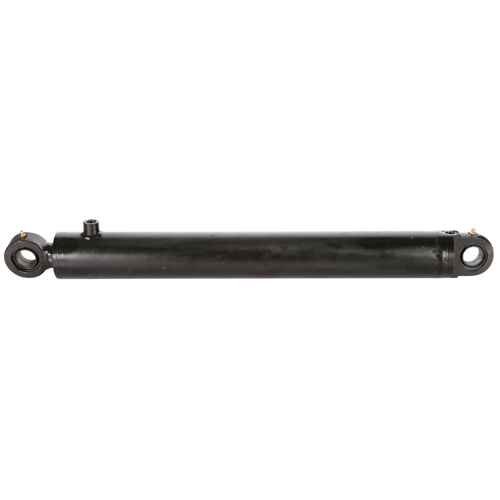

  Double-acting Hydraulic Cylinder 63x40x500.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH38.

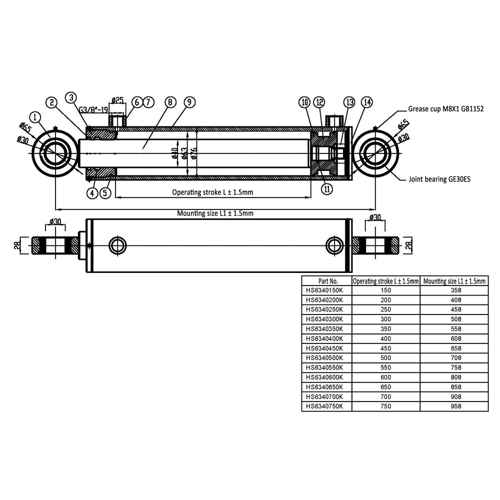

  Technical specification:
  - piston 63 mm
  - rod 40 mm
  - pivot bearing 30 mm
  - thread 3/8"
  - stroke length 500 mm
  - installation dimension 708 mm
  - working pressure max 210 bar
