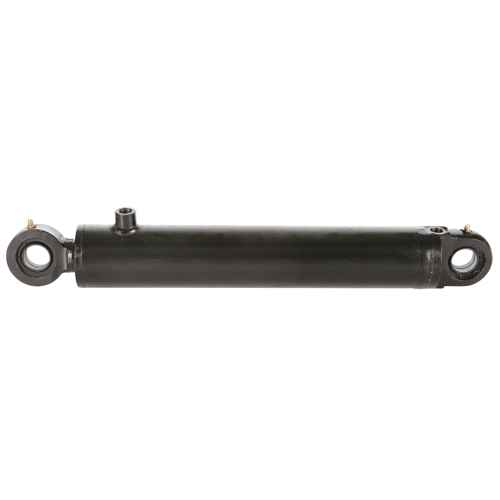

Hydraulic Cylinder 63x40x350 Painted

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDHS6340350K

  Manufacturer

  CharacteristicsInstallation dimensions 558 mm
  Working pressure max 210 bar
  Double-acting (Can be converted to single-acting)

  Double-acting Hydraulic Cylinder 63x40x350.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH38.

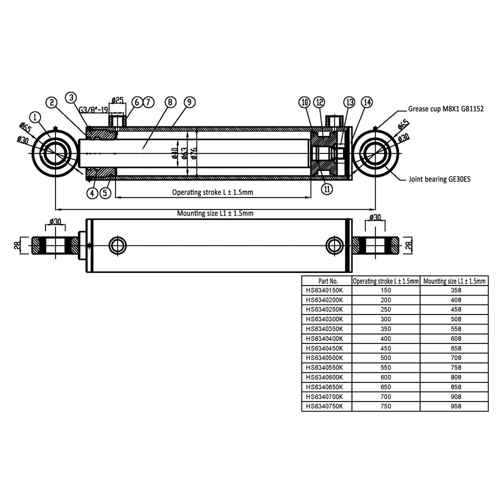

  Technical specification:
  - piston 63 mm
  - rod 40 mm
  - bushing 30 mm
  - thread 3/8"
  - stroke length 350 mm
  - installation measurement 558 mm
  - maximum working pressure 210 bar
