Hydraulic Cylinder 60X35X400 Painted

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS6035400J

  Manufacturer

  CharacteristicsInstallation dimensions 620 mm
  Articulation bearing diameter 25 mm
  Double-acting (Can be made single-acting)

  - LONGLIFE cylinder series, manufactured in Finland with improved and reinforced construction
  - end of the cylinder tube is threaded, so the cylinder can be repaired as needed
  - the piston rod is attached to the piston with a nyloc nut, which is also glued to minimize the risk of the nut loosening
  - the cylinder is replaceable and has the same dimensions as HS6035400T
  - double-acting

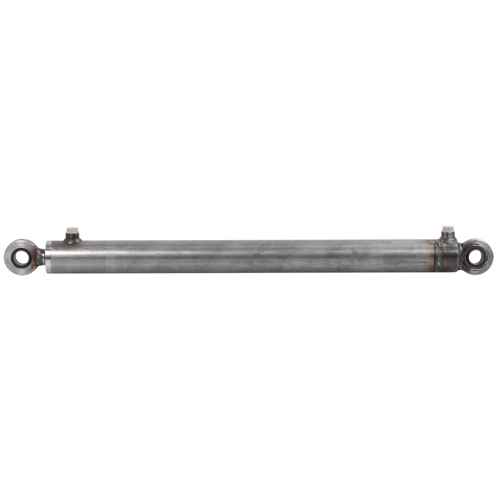

  Double-acting Hydraulic Cylinder 60x35x400.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH38.

  Technical data:
  - piston Ø 60 mm
  - rod Ø 35 mm
  - clevis 25 mm
  - thread G 3/8"
  - stroke 400 mm
  - dimensions 620 mm
  - A 220 mm, C Ø 70 mm, D Ø 25 mm, E Ø 65 mm
  - working pressure 300 bar
  - painted
