Hydraulic Cylinder 60x30x250

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDHS6030250K

  Manufacturer

  CharacteristicsInstallation dimension 453 mm
  Working pressure max 210 bar
  Double-acting (Can be made single-acting)

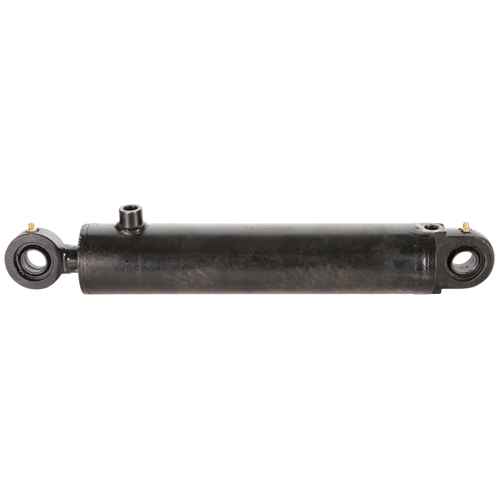

  Double-acting Hydraulic Cylinder 60x30x250
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH38.

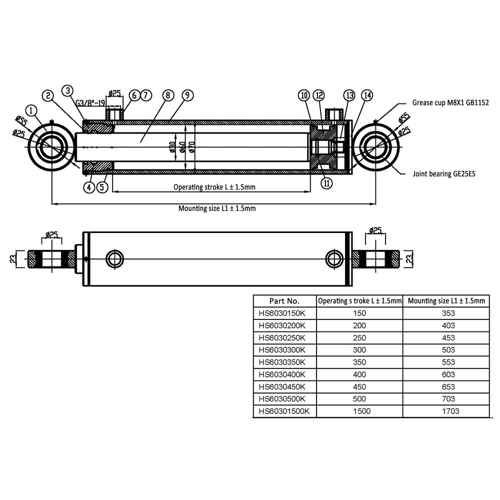

  Technical specification:
  - piston 60mm
  - rod 30mm
  - spherical bearing 25mm
  - thread 3/8"
  - stroke length 250mm
  - overall length 453mm
  - maximum operating pressure 210 bar
