Hydraulic Cylinder 50X30X700 Painted

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS5030700J

  ManufacturerAGRILIFE

  CharacteristicsInstallation dimensions 910 mm
  Articulation bearing diameter 25 mm
  Double-acting (Can be made single-acting)

  - LONGLIFE cylinder series, made in Finland with improved and reinforced construction
  - end of the cylinder tube is threaded for repair when needed
  - piston rod is secured to the piston with a nyloc nut, additionally glued to minimize the risk of the nut coming loose
  - interchangeable cylinder with the same dimensions as HS5030700T
  - double-acting

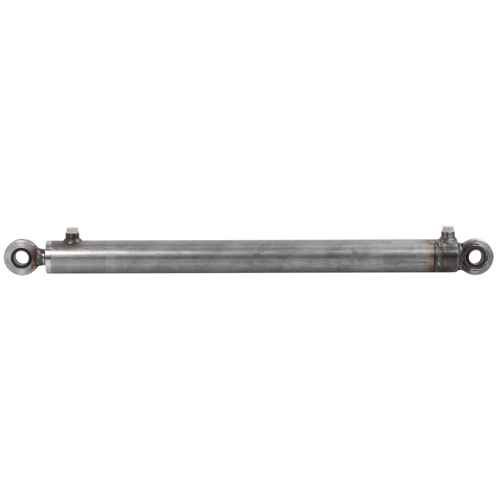

  Double-acting Hydraulic Cylinder 50x30x700.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with nipple HSH38.


  Technical data:
  - piston Ø 50 mm
  - rod Ø 30 mm
  - pivot bearing 25 mm
  - thread G 3/8"
  - stroke 700 mm
  - installation dimensions 910 mm
  - A 210 mm, C Ø 60 mm, D Ø 25 mm, E Ø 65 mm
  - operating pressure 300 bar
  - painted over
