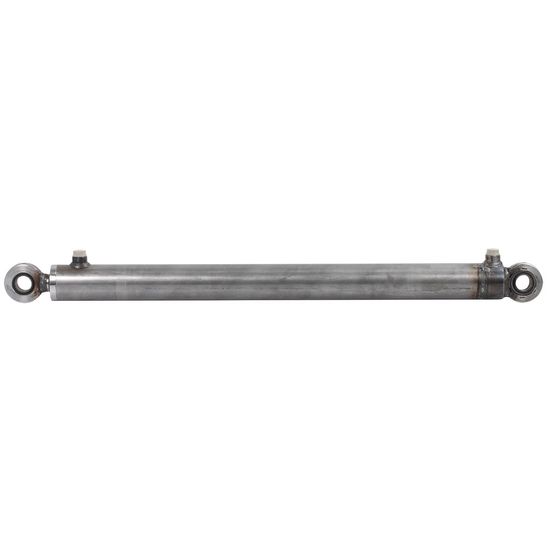

Hydraulic Cylinder 40x25X500 Unpainted

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS4025500T

  Manufacturer

  CharacteristicsInstallation dimensions 685 mm
  Operating pressure max 300 bar
  Double-acting (Can be made single-acting)

  Double Acting Hydraulic Cylinder 40x25x500.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH38.

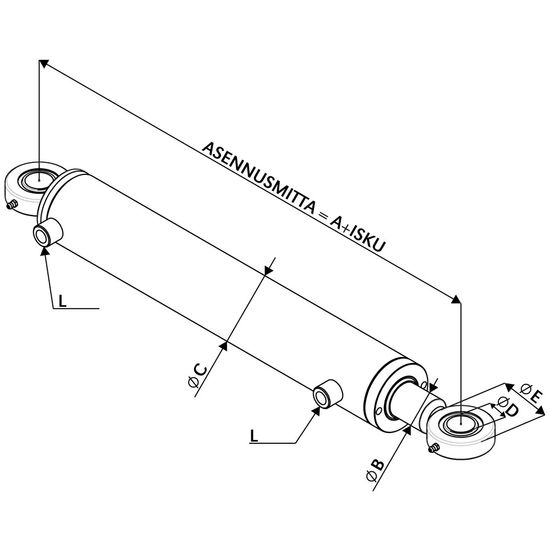

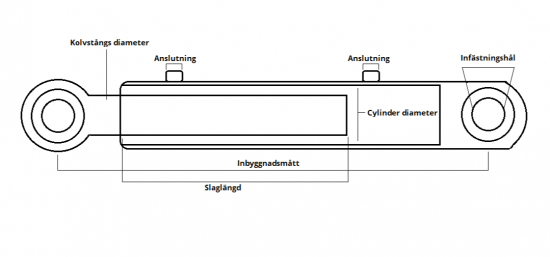

  Technical specification:
  - piston Ø 40 mm
  - A 185 mm
  - B = rod Ø 25 mm
  - C = cylinder outer dimension Ø 50 mm
  - D =  rod end bearing Ø 20 mm
  - E = Ø 55 mm
  - thread R 3/8"
  - stroke length 500 mm
  - installation dimension 685 mm
  - maximum working pressure 300 bar
  - unpainted
