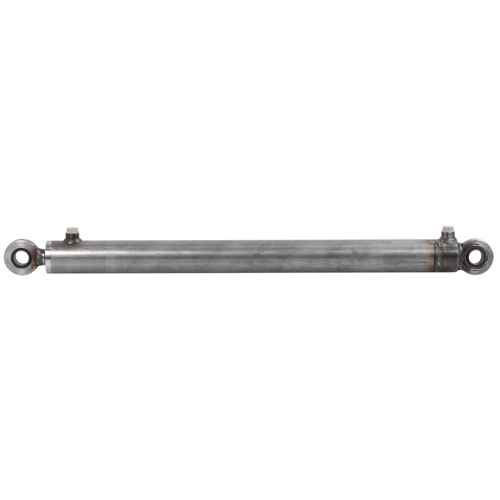

Hydraulic Cylinder 40X25X450 Unpainted

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS4025450J

  ManufacturerAGRILIFE

  CharacteristicsInstallation dimensions 635 mm
  Articulation bearing diameter 20 mm
  Double-acting (Can be converted to single-acting)

  - LONGLIFE cylinder series, manufactured in Finland with improved and reinforced construction
  - end of cylinder tube threaded for possible repairs
  - piston rod fastened to piston with a nyloc nut, additionally glued to minimize the risk of nut loosening
  - interchangeable cylinder with the same dimensions as HS4025450T
  - double-acting

  Double-acting Hydraulic Cylinder 40x25x450.
  The hydraulic cylinder can be converted to single-acting by plugging the upper hole with a nipple HSH38.



  Technical data:
  - piston Ø 40 mm
  - rod Ø 25 mm
  - clevis 20 mm
  - thread G 3/8"
  - stroke 450 mm
  - dimensions 635 mm
  - A 185 mm, C Ø 50 mm, D Ø 20 mm, E Ø 55 mm
  - working pressure 300 bar
  - painted
