Hydraulic Cylinder 40x25X350 Painted

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDHS4025350K

  Manufacturer

  CharacteristicsInstallation dimensions 500 mm
  Operating pressure max 210 bar
  Double-acting (Can be made single-acting)

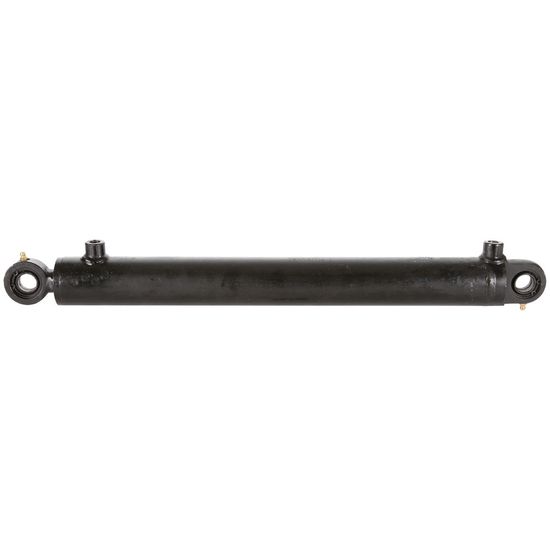

  Double-acting Hydraulic Cylinder 40x25x350.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH14.

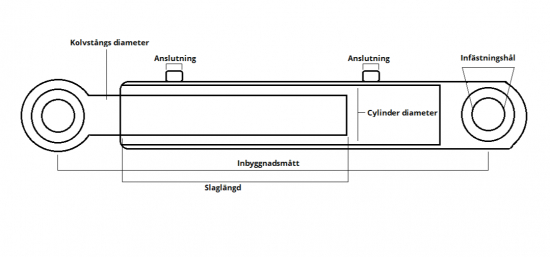

  Technical specifications:
  - piston 40 mm
  - rod 25 mm
  - clevis 20 mm
  - thread 1/4"
  - stroke length 350 mm
  - mounting length 500 mm
  - maximum operating pressure 210 bar
