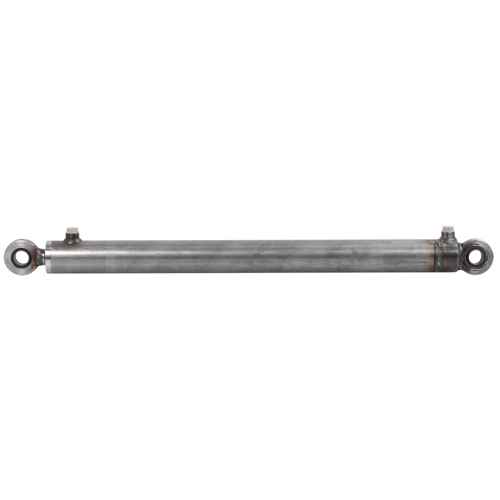

Hydraulic Cylinder 40x25X300 Unpainted

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHS4025300J

  ManufacturerAGRILIFE

  CharacteristicsInstallation dimensions 485 mm
  Articulation bearing diameter 20 mm
  Double-acting (Can be converted to single-acting)

  - LONGLIFE cylinder series, manufactured in Finland with improved and reinforced construction
  - the end of the cylinder tube is threaded, allowing the cylinder to be repaired if needed
  - the piston rod is fastened to the piston with a nyloc nut, which is also glued, minimizing the risk of the nut coming loose
  - the cylinder is interchangeable and has the same dimensions as HS4025300T
  - double-acting

  Double-acting Hydraulic Cylinder 40x25x300.
  The hydraulic cylinder can be converted into single-acting by plugging the upper hole with a nipple HSH38.

  Technical data:
  - piston Ø 40 mm
  - rod Ø 25 mm
  - clevis 20 mm
  - thread G 3/8"
  - stroke 300 mm
  - dimensions 485 mm
  - A 185 mm, C Ø 50 mm, D Ø 20 mm, E Ø 55 mm
  - operating pressure 300 bar
  - painted over
