Double-acting hydraulic cylinder 70x40X450

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDSG70400450

  Manufacturer

  CharacteristicsInstallation length 700 mm
  Working pressure max 250 bar
  Double-acting (Can be made single-acting)

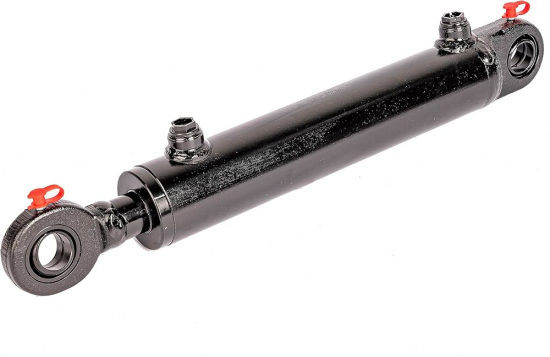

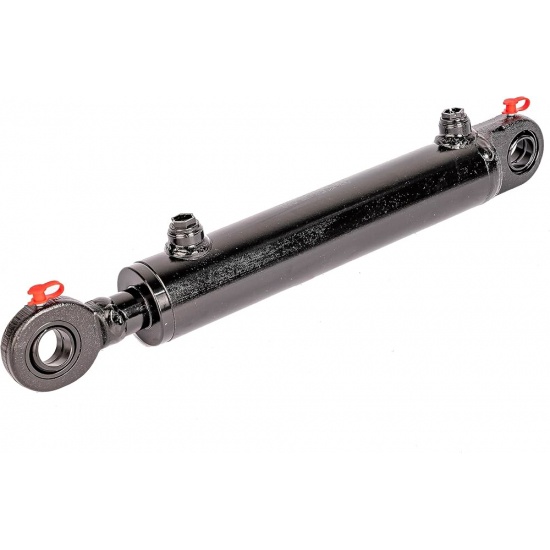

  Double-acting Hydraulic Cylinder 70x40x450.
  The hydraulic cylinder can be made single-acting by plugging the upper hole with a nipple HSH38.

  Technical specification:
  - piston 70 mm
  - rod 40 mm
  - bearing 25 mm
  - thread 3/8"
  - stroke length 450 mm
  - installation dimension 700 mm
  - max working pressure 250 bar
