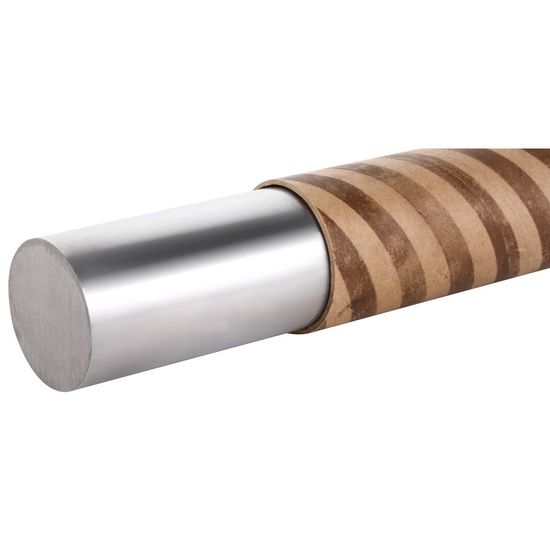

Chromed Round Bar 35 X 1000Mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDTEKR351000

  Manufacturer

  Characteristics

  - chrome-plated rod Thalachrome S
  - applications: pins, shafts, hydraulic rods
  - dimensions Ø 35 mm x length 1000 mm
  - tolerance ISO f7
  - straightness 0.2 mm / 1000 mm
  - corrosion resistance 216 h NSS class 9
  - coating thickness ? 20 µ
  - coating hardness 900 HV 0.1 (min.)
  - coating roughness max. 0.07-0.2 µ
  - rod material 20MnV6
  - protective cardboard sleeve
  - cut by sawing
  - grind off chrome plating when drilling holes
  - material can be welded

  Spare parts / Accessories:
  - suitable anti-friction bearings LFB0923530, LFB0923540, LFB0923550
