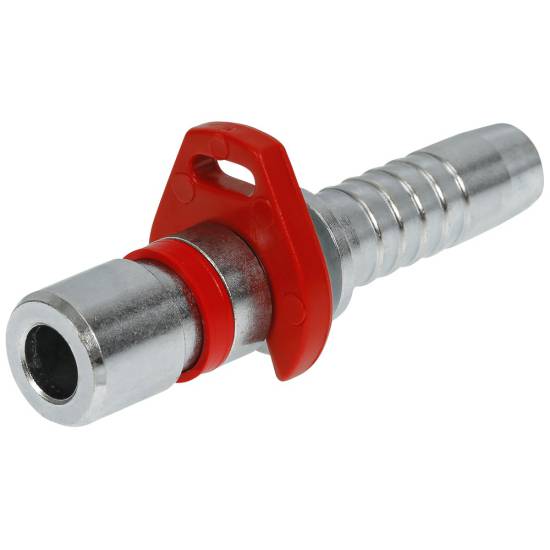

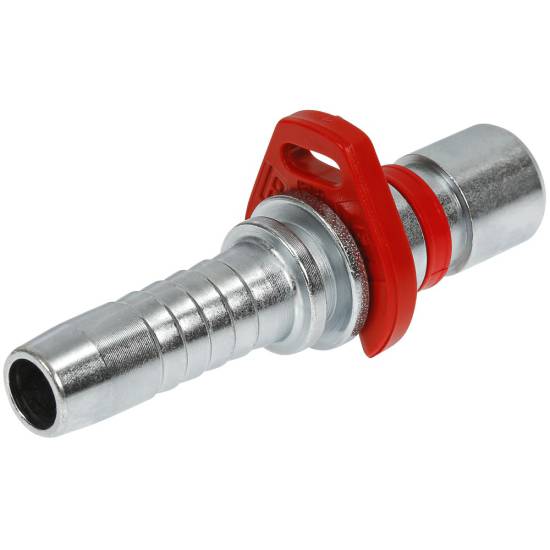

Weo Plug-In 16mm-1/2 Hose Coupling

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH147100808

  Manufacturer

  Characteristics

  - WEO Plug-in 710 series hose coupling
  - for single or double layer reinforced hydraulic hoses
  - standard SS-ISO 8032
  - features such as click-to-connect and self-adjustment make them easy to install in the hydraulic system
  - the soft-sealing coupling also provides leak-free connections
  - as WEO requires minimal space, it is easy to change the connections even in tight spaces
  - material hardened steel (galvanized)
  - operating temperature -30...+100 °C
  - hose size -08
  - for 16 mm and 1/2" hose
  - working pressure max. 350 bar

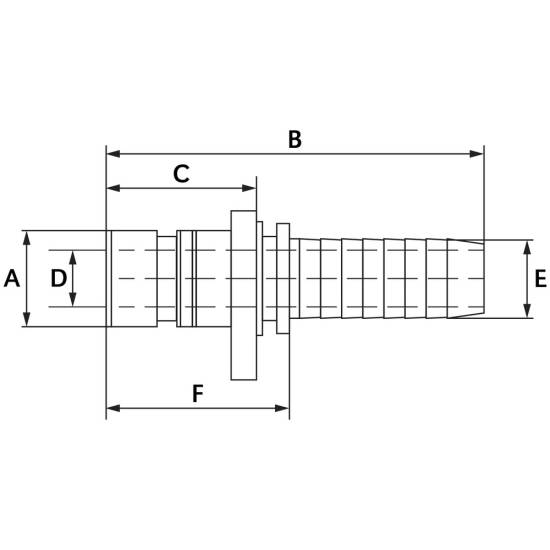

  Dimensions (mm):
  - A 16
  - B 64
  - C 22
  - D 9,5
  - F 33
