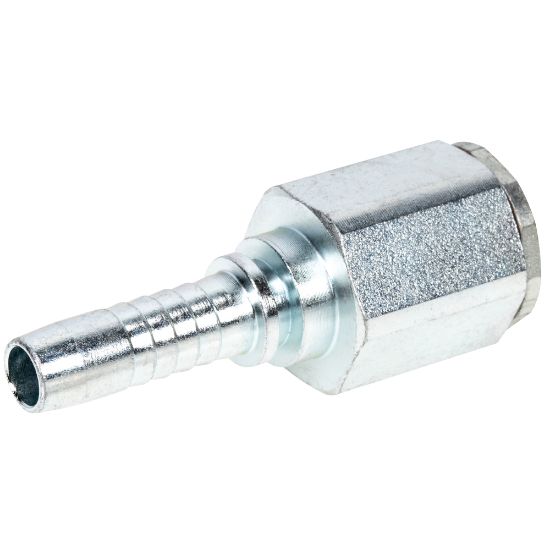

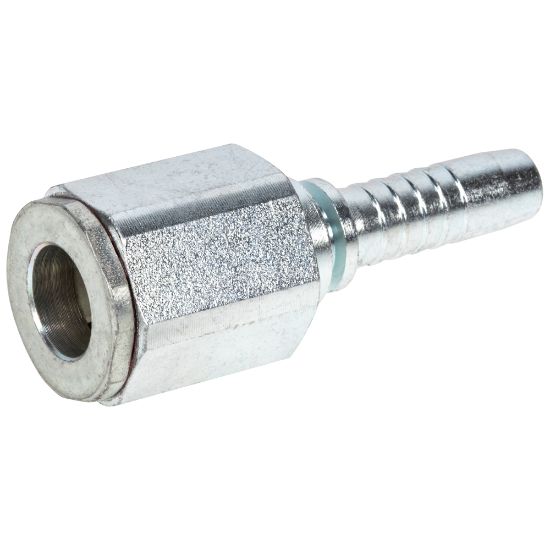

Weo Plug-In 16mm-1/2 Female Hose Coupling

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH147200808

  Manufacturer

  Characteristics

  - WEO Plug-in 817 series hose coupling with straight hose coupling
  - for single- or dual-layer reinforced hydraulic hoses
  - standard SS-ISO 8032
  - the characteristics of the couplings such as click-to-connect and self-adjustment make them easy to install in the hydraulic system
  - the softly sealed coupling also provides leak-free connections
  - as WEO requires minimal space, it is easy to change connections even in tight spaces
  - material hardened steel (galvanized)
  - operating temperature -30...+100 °C
  - core 1/2"
  - hose size -08
  - 1/2" connection (13.6)
  - max. working pressure 350 bar

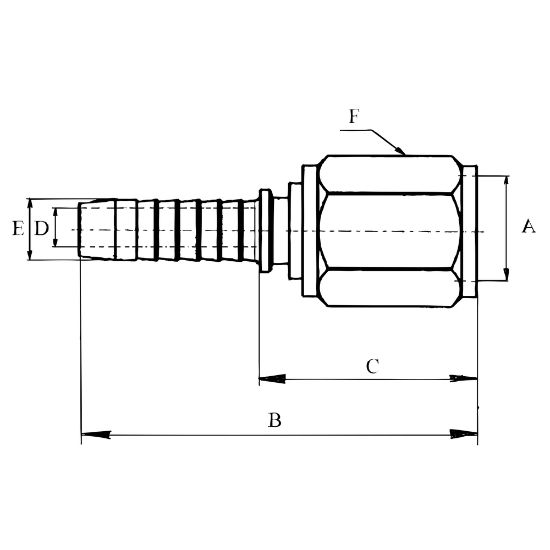

  Dimensions (mm):
  - A 16
  - B 67
  - C 36.3
  - D 9.5
  - F 28
