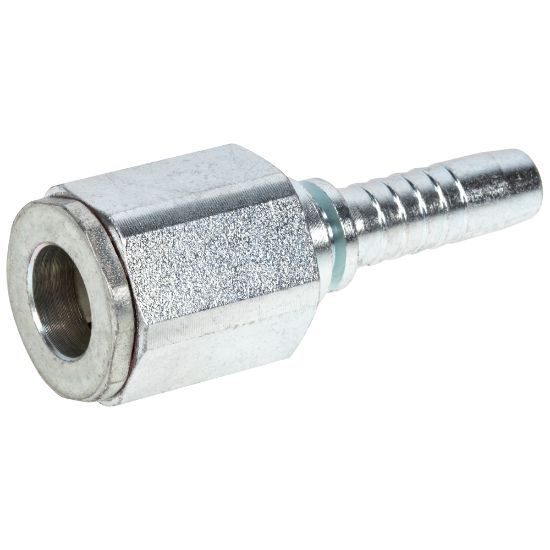

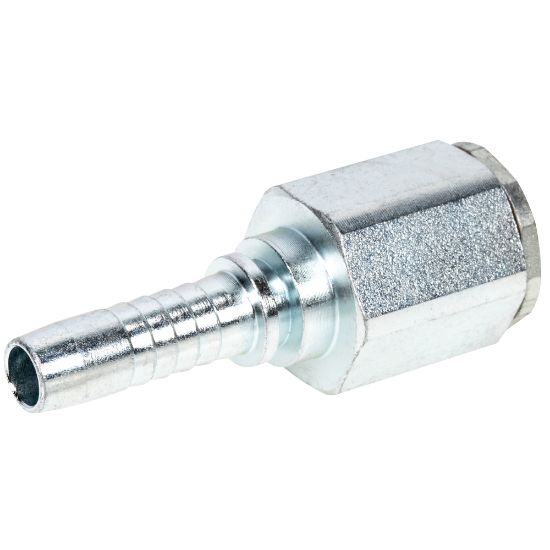

Weo Plug-In 13mm-3/8 Female Hose Coupling

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH147200606

  Manufacturer

  Characteristics

  - WEO Plug-in 817 series hose coupling with straight hose coupling
  - For single or double layer reinforced hydraulic hoses
  - Standard SS-ISO 8032
  - Features such as click-to-connect and self-adjustment make them easy to install in the hydraulic system
  - The soft-sealed coupling also provides leak-free connections
  - Since WEO requires minimal space, it is easy to change the connections even in tight spaces
  - Material hardened steel (galvanized)
  - Operating temperature -30...+100 °C
  - Core 3/8"
  - Hose size -06
  - Connection 3/8? (10.1 mm)
  - Maximum working pressure 350 bar

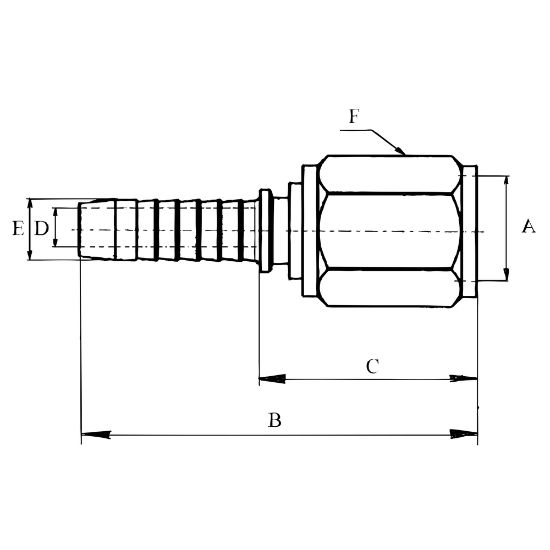

  Dimensions (mm):
  - A 13
  - B 66.9
  - C 36
  - D 7
  - F 24
