Weo Plug-In 10mm-1/4 Female Hose Coupling

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH147200404

  Manufacturer

  Characteristics

  - WEO Plug-in 817 series hose coupling with straight hose coupling
  - for single or double reinforced hydraulic hoses
  - standard SS-ISO 8032
  - features like click-to-connect and self-adjustment make them easy to install in the hydraulic system
  - the soft-sealed coupling also provides leak-free connections
  - as WEO requires minimal space, changing connections in tight spaces is easy
  - material hardened steel (zinc-plated)
  - operating temperature -30...+100 °C
  - core 1/4"
  - hose size -03
  - connection 3/16? (5.25 mm)
  - maximum working pressure 350 bar

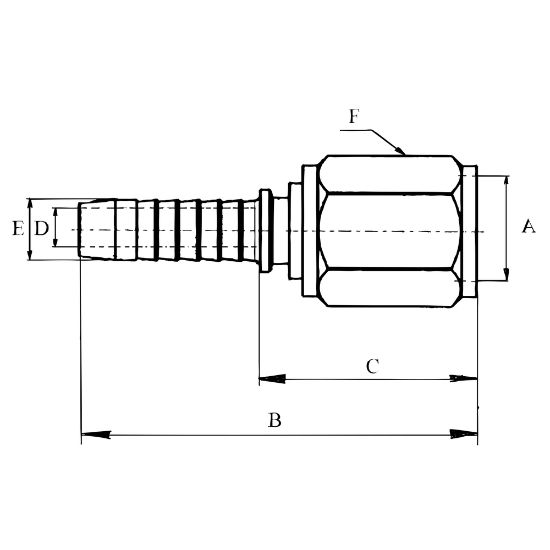

  Dimensions (mm):
  - A 10
  - B 58.5
  - C 33.2
  - D 2.8
  - F 20
