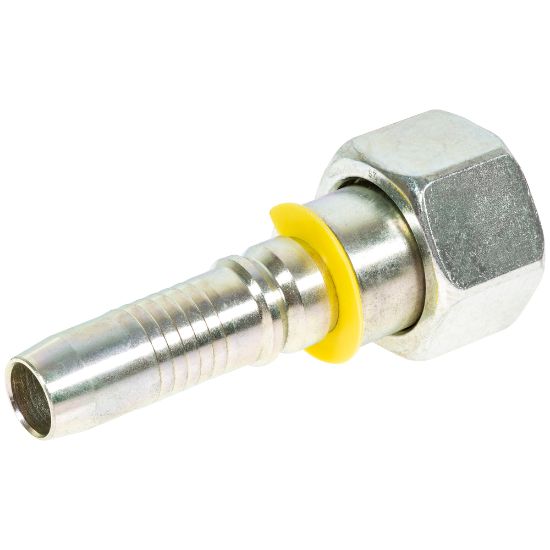

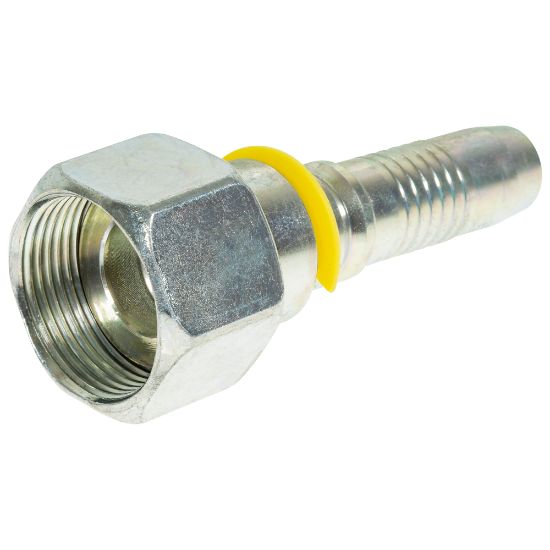

Interlock Coupling Orfs 1.11/16-1 Straight Inside

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDIL224102016

  Manufacturer

  Characteristics

  - DK-ORFS / UNF thread / ORFS sealing
  - ISO 12151 / SAE J516
  - working pressure 414 bar
  - UNF thread 1 11/16"-12
  - hose size -16
  - hose DN 25
  - hose inner diameter 1"
  - hose inner diameter 25.4 mm

  Interlock couplings:
  - the couplings work by stripping the hose internally and externally to achieve two zones: a locking and a sealing one
  - the locking occurs in the front part of the coupling assembly, where the nipple and sleeve are pressed together with the hose's reinforcement layer
  - the rear part of the coupling assembly is the sealed part, where sealing occurs between the nipple and the inner tube
  - Interlock couplings are used for multispiral hoses and are recommended for hydraulic systems with very high pulsating pressures and high safety requirements
