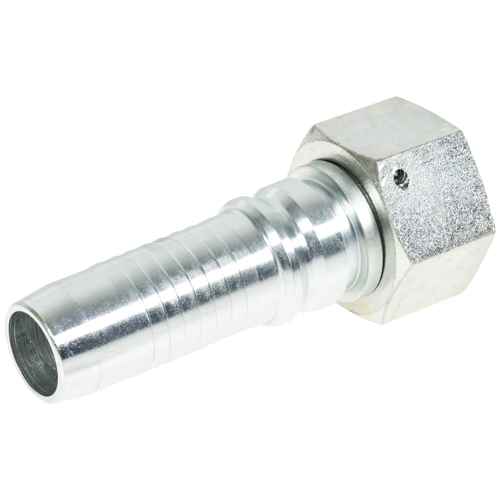

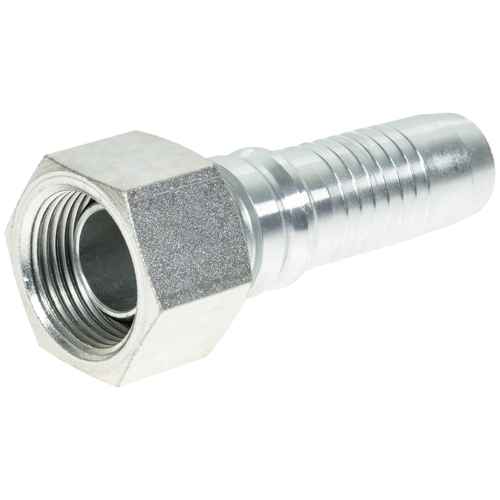

Interlock Coupling BSP 1-1 Straight Inside

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDIL205101616

  ManufacturerVITILLO

  Characteristics

  - DKR / BSPP internal thread / sealing cone 60°
  - ISO 12151 / SAE J516
  - working pressure 420 bar
  - thread BSPP 1"-11
  - hose size -16
  - hose DN 25
  - hose inner Ø 1"
  - hose inner Ø 25.4 mm

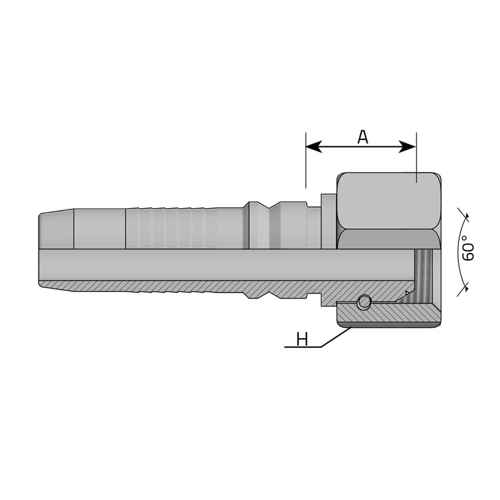

  - H 38 mm
  - A 24.7 mm

  Interlock couplings:
  - the coupling works by peeling the hose both internally and externally to achieve two zones
