Hose Coupling Jic 1.7/8-1.1/4 90 Male Thread

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDPS225902420

  Manufacturer

  Characteristics

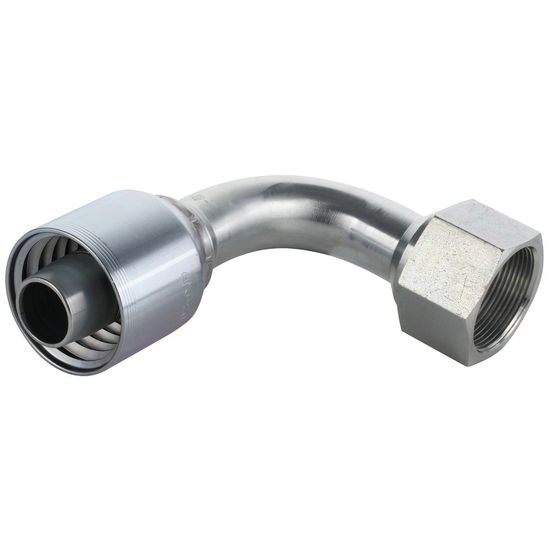

  - hydraulic hose coupling with pre-applied clamp sleeve, suitable for hoses with 1, 2, 3 or 4 layers
  - 90° angle / internal thread / JIC sealing cone 37°
  - thread UN 1 7/8" -12

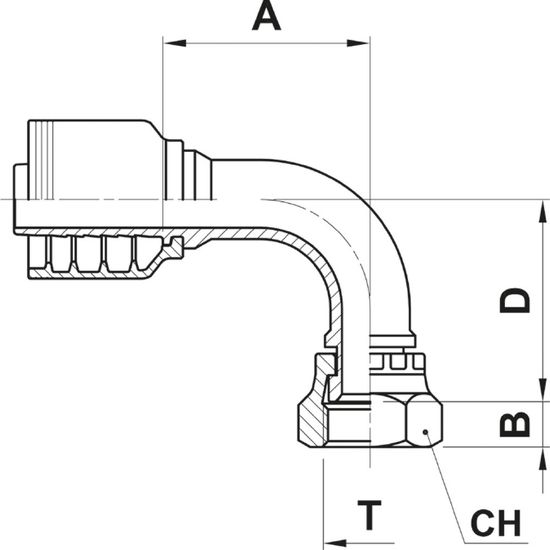

  - A: 92 mm
  - B: 18.5 mm
  - D: 95 mm
  - CH: 55 mm
  - hose size -20
  - hose DN 32
  - hose inner Ø 1 1/4"
  - hose inner Ø 31.75 mm
