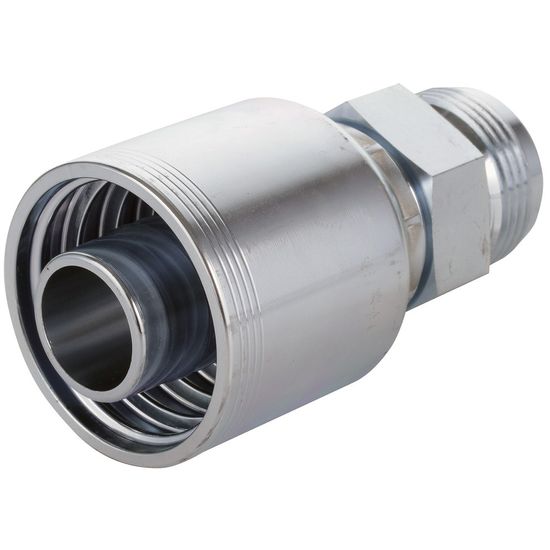

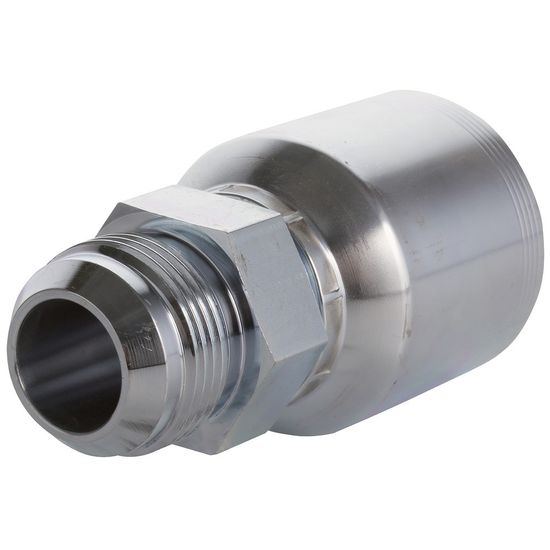

Hose coupling Jic 1.5/16-3/4 Straight Ext Thread

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDPS125101612

  Manufacturer

  Characteristics

  - hydraulic hose coupling with pre-applied clamping sleeve, suitable for hoses with 1, 2, 3, or 4 layers
  - external thread / JIC sealing cone 37°
  - thread UN 1 5/16" -12

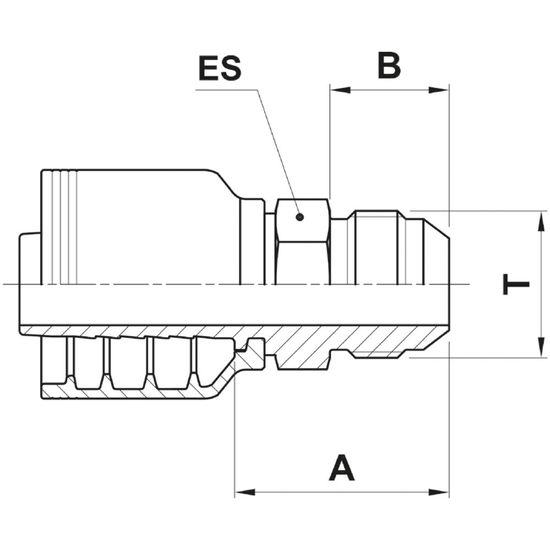

  - A: 47.1 mm
  - B: 23.1 mm
  - ES: 36 mm
  - hose size -12
  - hose DN 20
  - hose inner Ø 3/4"
  - hose inner Ø 19.05 mm
