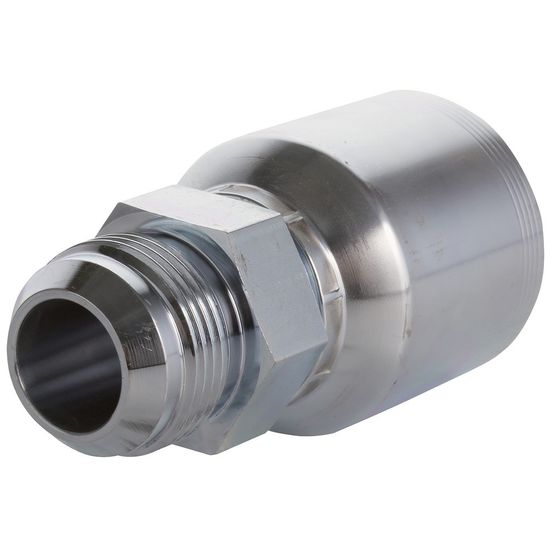

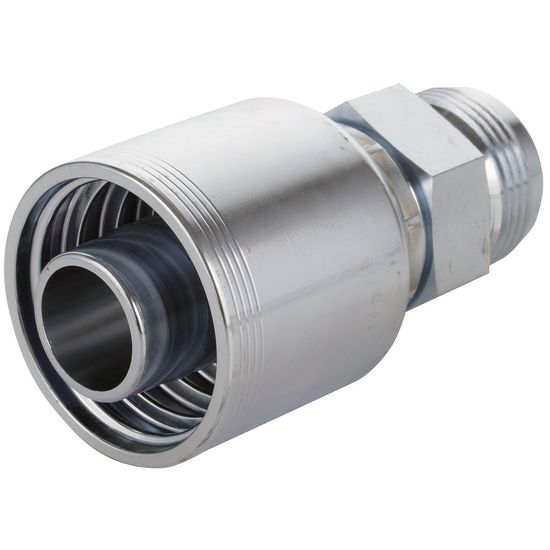

Hose coupling Jic 1.1/16-5/8 Straight Ext Thread

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDPS125101210

  Manufacturer

  Characteristics

  - hydraulic hose coupling with pre-applied clamping sleeve, suitable for hoses with 1, 2, 3, or 4 layers
  - external thread / JIC sealing cone 37°
  - thread UN 1 1/16" -12

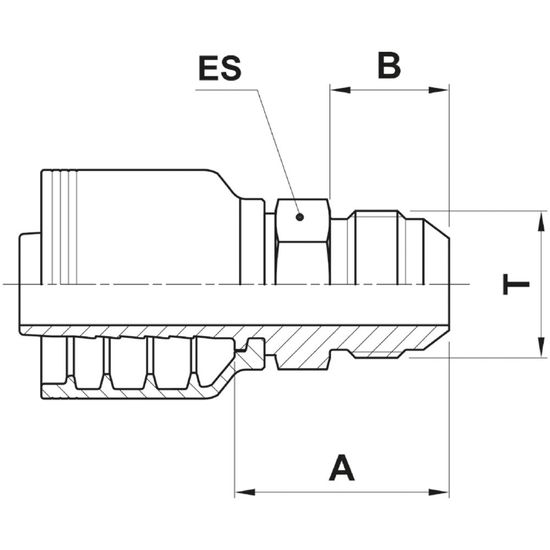

  - A: 38.9 mm
  - B: 21.9 mm
  - ES: 27 mm
  - hose size -10
  - hose DN 16
  - hose inner Ø 5/8"
  - hose inner Ø 15.87 mm
