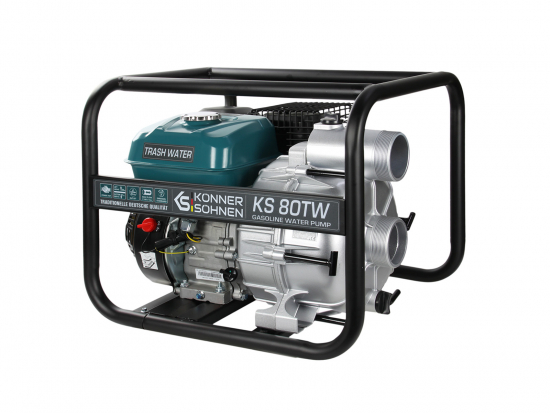

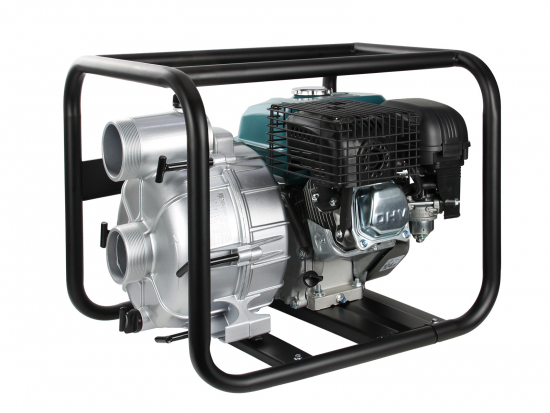

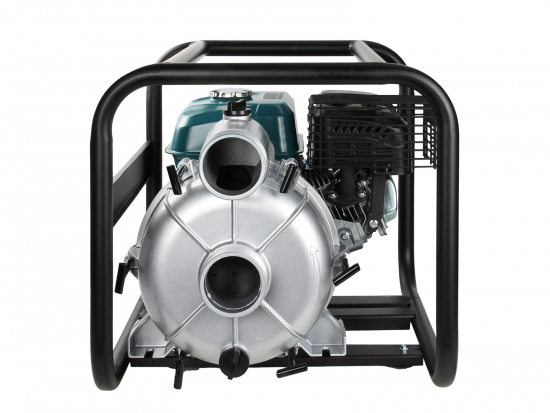

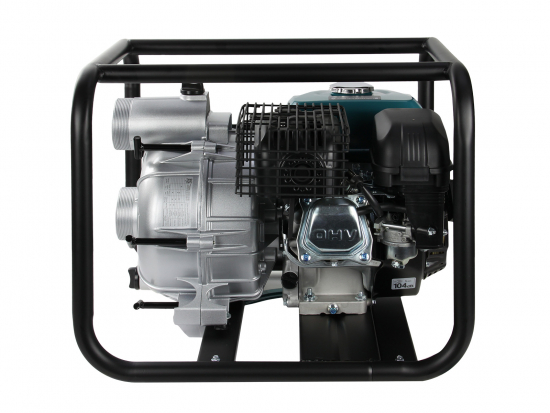

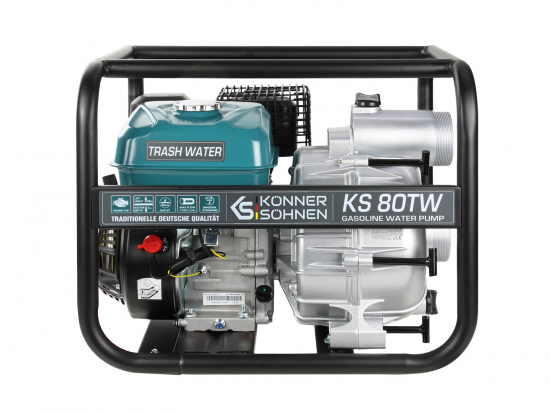

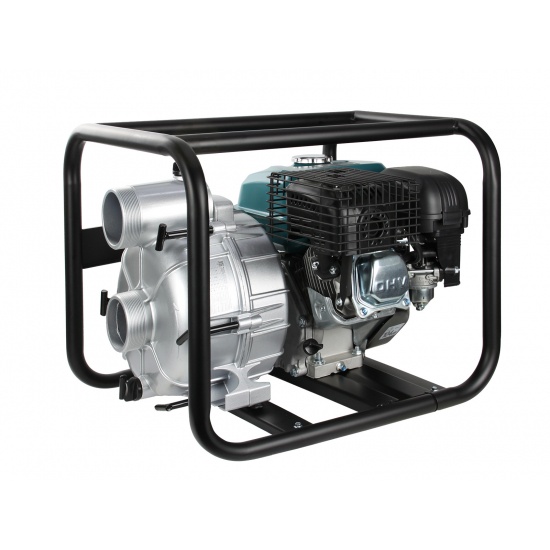

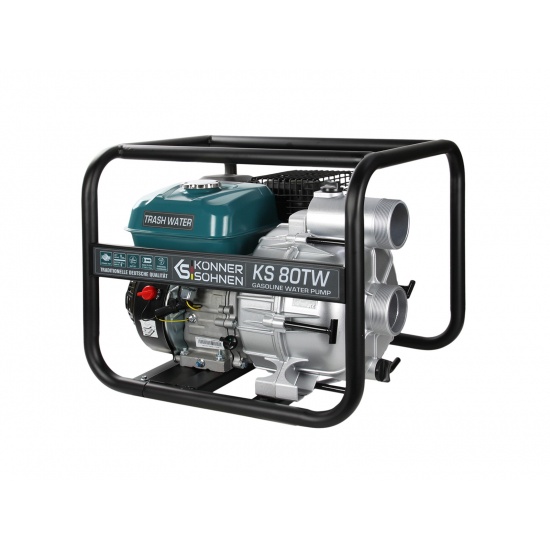

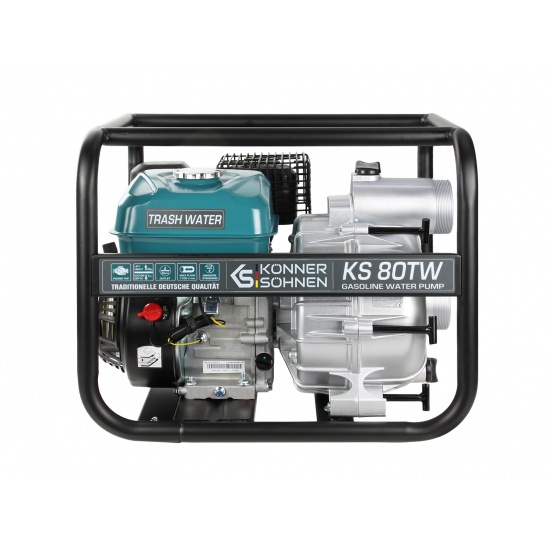

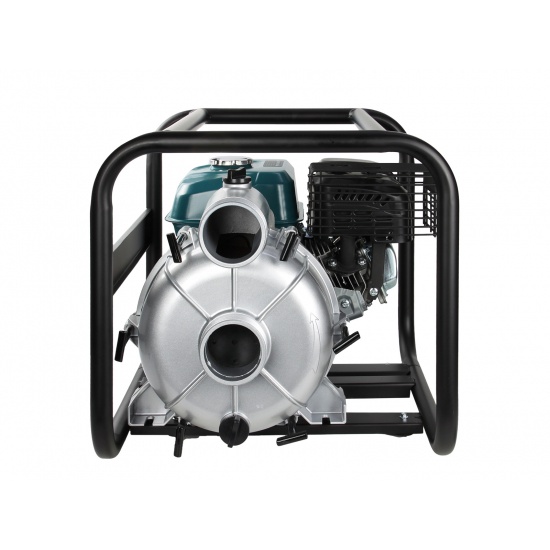

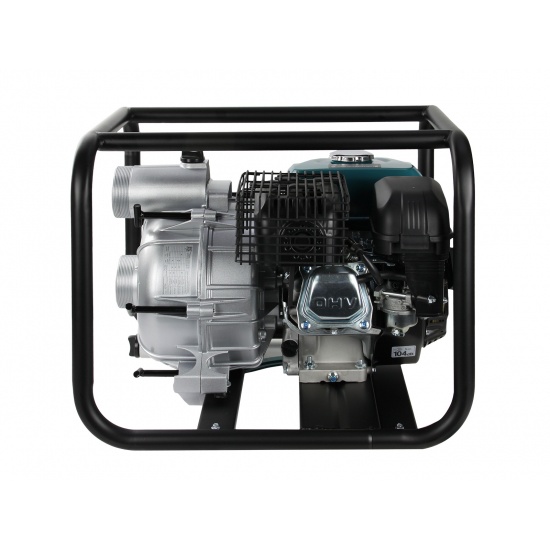

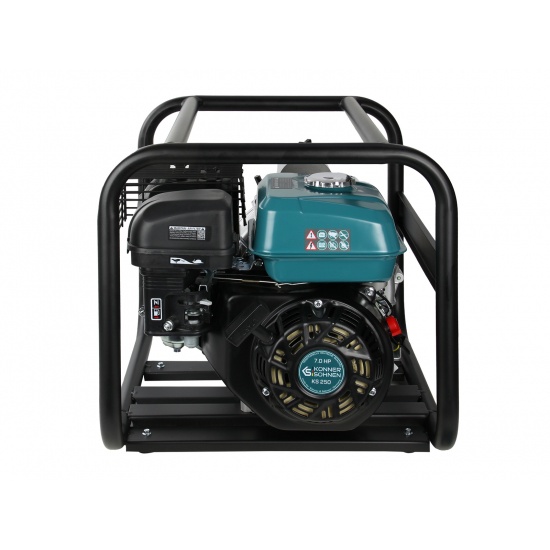

Motor pump for wastewater KS 80TW

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKS80TW

  ManufacturerKönner & Söhnen

  Characteristics

  The high-performance sewage pump KS 80TW from Könner & Söhnen is designed to pump liquids containing up to 25% solid particles with a size of up to 20 × 25 mm. The main users of the KS 80TW sewage pumps are municipal service providers, agricultural companies, and construction companies. After starting the engine, the pump should be run for approximately 30 seconds, then the engine is turned off and more water is added to the pump to increase efficiency and continue operation.

  Features:

  • K&S motor with a long service life is manufactured under license from DIMAX Int. GmbH (Germany).
  • All water pumps from Könner & Söhnen TM are equipped with a reinforced steel frame for demanding work.
  • Compact size and low weight.
  • Housing made of high-quality aluminum that is resistant to corrosion, temperature changes, and deformation.
  • High performance.

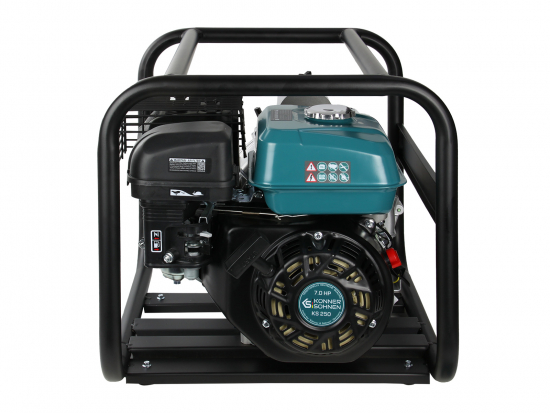

  Könner & Söhnen engines
  Water pumps from Könner & Söhnen have durable and fuel-efficient engines manufactured under strict control by German engineers. The robust K&S engine meets all European quality standards, including the latest EURO V emissions standard.

  Individual serial numbers on the engines
  Each engine has a unique serial number, allowing for the verification of production and service quality. Könner & Söhnen engines are characterized by easy starting and reduced vibrations.

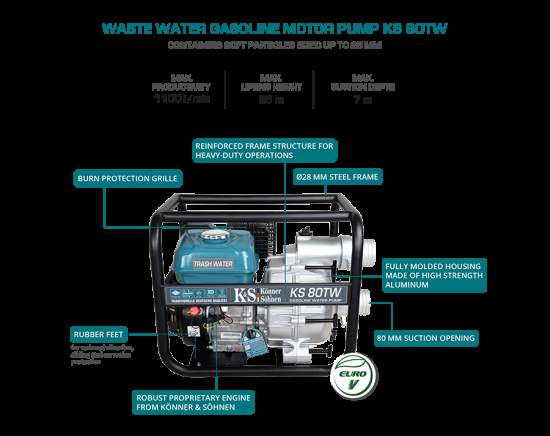

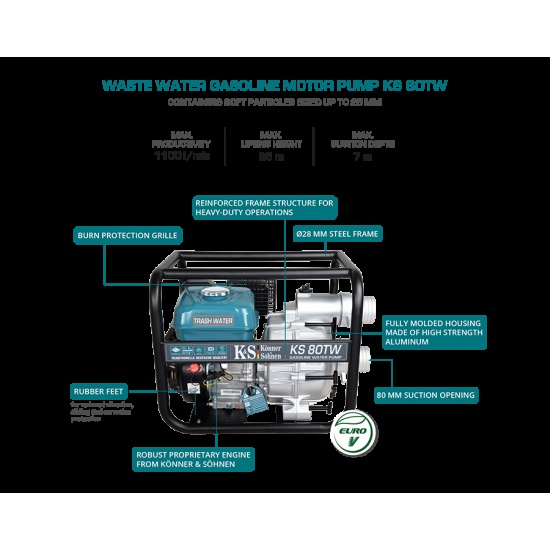

  Construction
  The housing of the Könner & Söhnen motor pumps is made with high-quality cast aluminum that is resistant to corrosion, temperature effects, and deformation. The water pumps are equipped with a reinforced steel fuel tank, which extends operating time without refueling.

  Reinforced frame
  All water pumps from Könner & Söhnen TM are equipped with a reinforced steel frame that protects the pump from damage during operation and transport and is indispensable for heavy-duty tasks.

  Vibration dampers
  Water pumps from Könner & Söhnen are equipped with anti-slip rubber feet to reduce vibrations and protect against corrosion. The rubber dampers prevent the operating pump from damaging the floor surface and scratching the frame's surface.

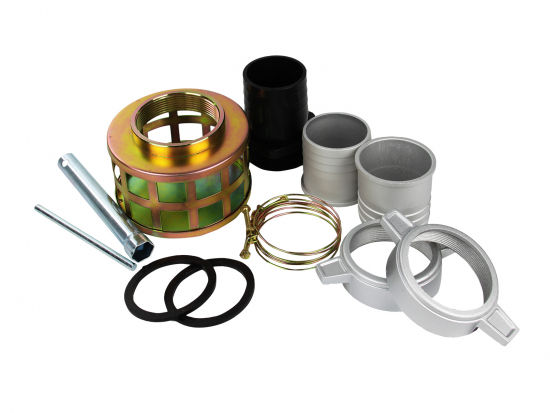

  Accessories

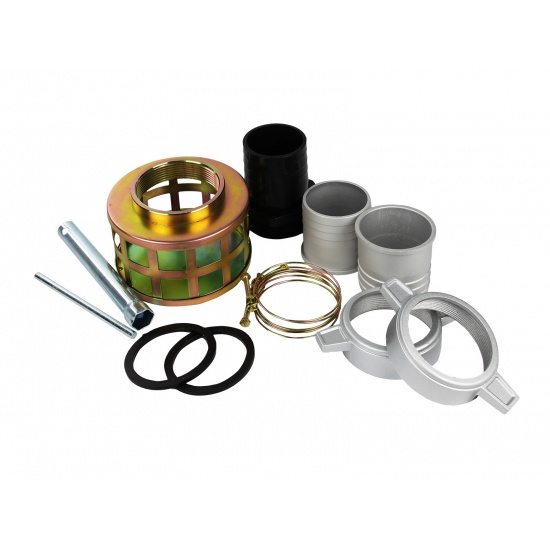

  The water pumps come with the following accessories: water filter, assembly kit, spark plug wrench, and hose connection kit.

  Technical specification:

  Engine model: KS 250
  Engine displacement: 212 cm³
  Engine power: 7.0 hp
  Fuel tank volume: 3.6 l
  Crankcase volume: 0.6 l
  Sound level Lpa (7 m) / Lwa: 79 dB / 104 dB
  Maximum capacity: 1100 l/min
  Rated speed: 3600 rpm
  Maximum lift height: 26 m
  Maximum suction depth: 7 m
  Inlet pipe diameter: 80 mm
  Outlet pipe diameter: 80 mm
  Net weight (LxWxH): 530 x 460 x 435 mm
