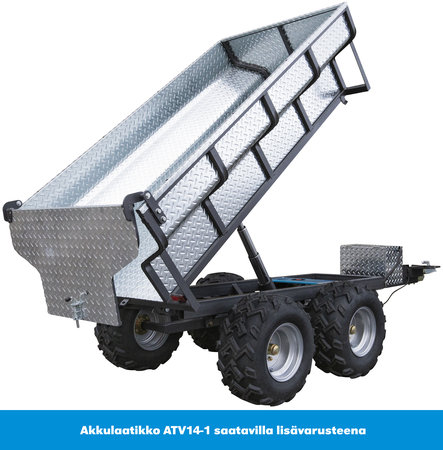

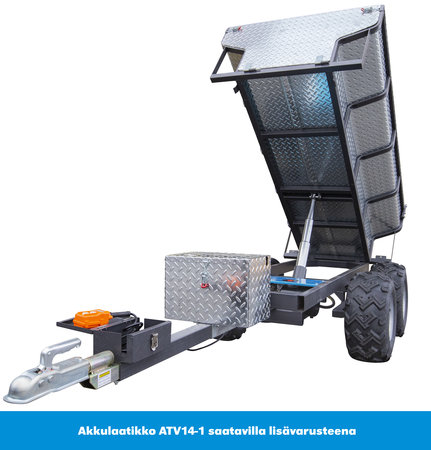

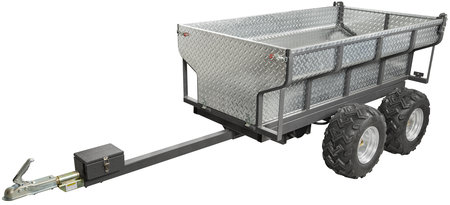

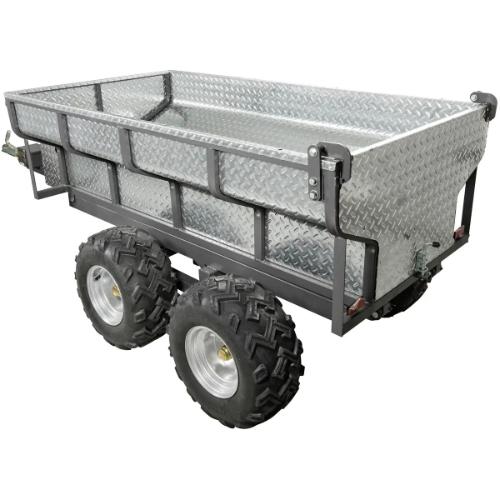

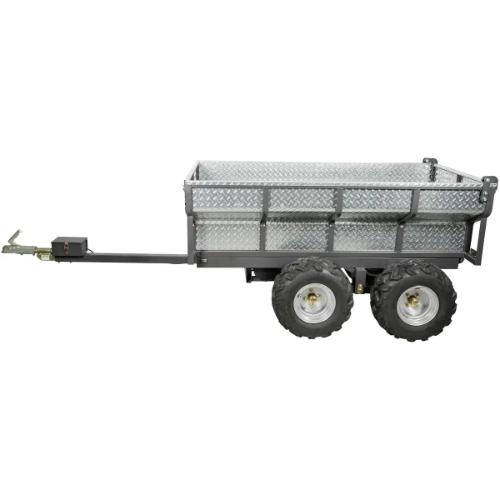

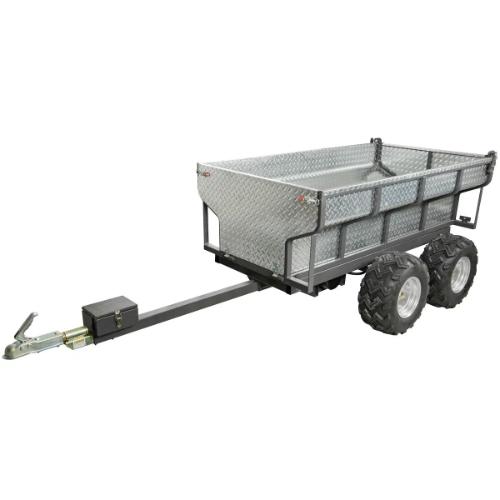

ATV Tipping Trailer Electric Hydraulic Max 1400KG

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDATV14

  Manufacturer

  Characteristics- W 3450 x L 1250 x H 1100 mm
  - max. capacity of 1400 kg


  - max. capacity of 1400 kg
  - suitable for small tractors and ATVs
  - electro-hydraulic, three-stage telescopic tipper
  - powered by ATV's own 12 V battery
  - control unit with cable
  - tray 1.5 mm galvanized tread plate
  - swivel head, Ø 50 mm
  - internal dimensions of the tray 2000 x 1070 x 580 mm
  - tires 22x11-10
  - rocking
  - rear panel opens from below, front panel removable
  - hydraulics and electricity placed under the tray for protection
  - cart size W 3450 x L 1250 x H 1100 mm
  - oil tank capacity 4 l, delivered without hydraulic oil
  - weight 270 kg
