  CharacteristicsNEW! Now with a larger screen!

  MachineCam is a professional camera system designed to make your work easier, safer, and more efficient.

  MachineCam HD is a wireless camera system with very high image quality (HD) and long range (300 m).
  Developed to perform flawlessly in the toughest conditions.

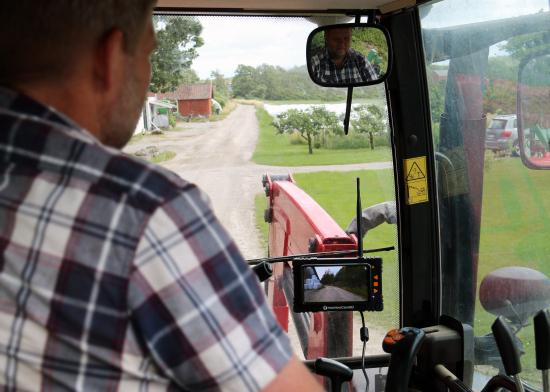

  Used for aerial emptying, baling, reversing, etc. for safer and more efficient work.
  Robust design (IP69K) built to last, water-resistant, and interference-free. 5-year warranty.



  Technical specification Camera:
  - Operating frequency: 2400-2483.5 MHz
  - Sensor: 1/4" CMOS, HM1246
  - Resolution: 1280 (H) x 720 (V)
  - Maximum output power: 18dBm
  - Wireless range: Up to 300 m
  - Operating temperature: -20 degrees +70 degrees
  - IP rating: IP69K
  - Minimum illumination: 0 Lux
  - Night vision: 10-15 m
  - Wide-angle: 110 degrees
  - Power supply: 10V-32 VDC
  - Power consumption: Day 240mA/12V Night 390mA/12V

  Technical specification Monitor:
  - Operating frequency: 2400-2483.5 MHz
  - Screen type: 7" HD digital panel
  - Resolution: 1280 x 720
  - Wireless range: Up to 300 m
  - Delay: 200 ms
  - Frame rate: 25 frames/second
  - Operating temperature: -20 degrees +70 degrees
  - Brightness: 500 cd/m2
  - Contrast: 800:1
  - Channels: 4
  - Power supply: 10V-32 VDC
  - Power consumption: 8 W

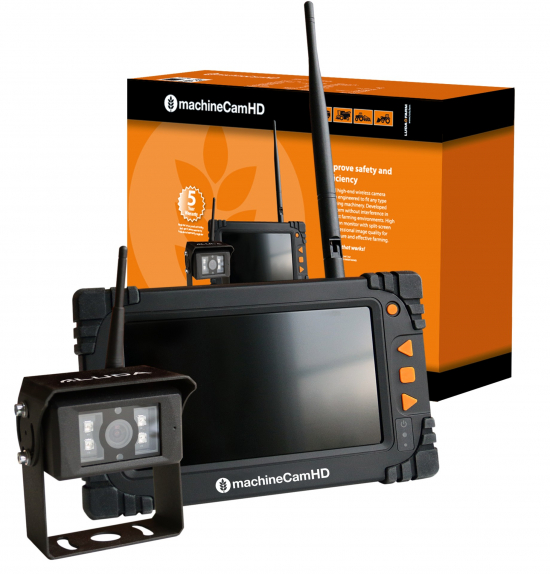

  Includes:
  - MachineCam HD Camera
  - MachineCam Monitor 7" HD
  - Power cable for camera 3 m
  - Dual suction cups
  - Sunshade for monitor
  - Camera antenna 3 dB
  - Monitor antenna 5 dB
  - Monitor power cable for cigarette lighter (spiral) 3m
  - Monitor direct power cable 3m
  - Quick installation guide
